Cabin
 |
|||
|---|---|---|---|

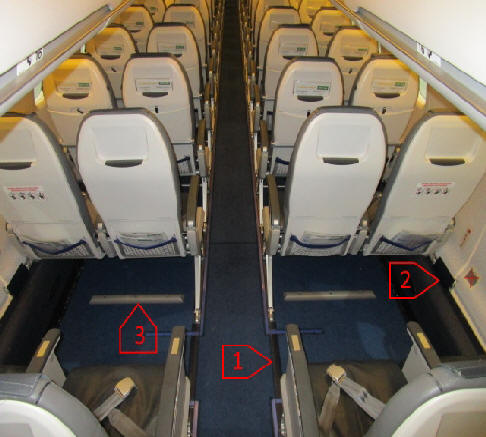

| Item | Bezeichnung | P/N | Menge |
| 1 | seat rail cover inboard (blue) | N346-1268 | |
| 2 | seat rail cover outboard (blue) | S1556E9 | |
 |
|||
|---|---|---|---|
| EO | B-25-008 | ||

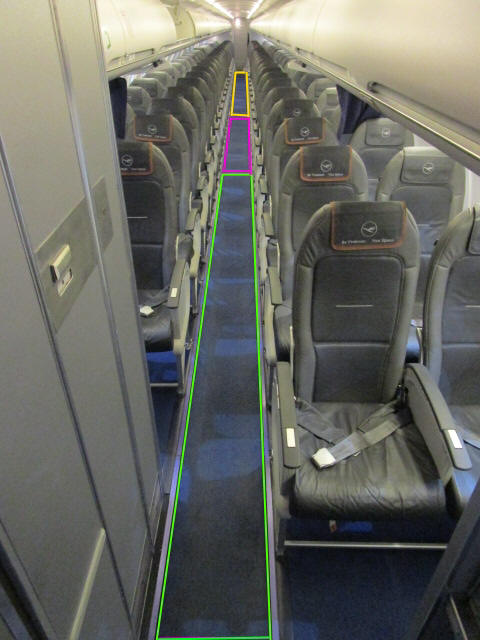

| Item | Bezeichnung | P/N | Menge |
| green | Carpet aisle fwd | BAI-12066-EPA | |
| red | Carpet aisle mid | BAI-12065-EPA | |
| yellow | Carpet aisle aft | BAI-12064-EPA | |
|
> Doppelseitiges Klebeband |
KB65B/50 | 3 | |

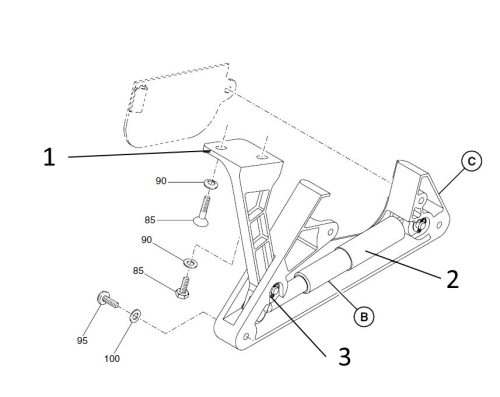

Bin
|
|||
|---|---|---|---|
| CMM 25-27-62 Page 11400 | |||
| Item | Bezeichnung | P/N | Menge |
| 1 | arm hinge R/H | C683973-4 | |
| 1 | arm hinge L/H | C683973-3 | |
| 2 | Damper | SP8516 | |
| 3 | cotter pin | MS24665-103 | 3 |
 |
|||
|---|---|---|---|

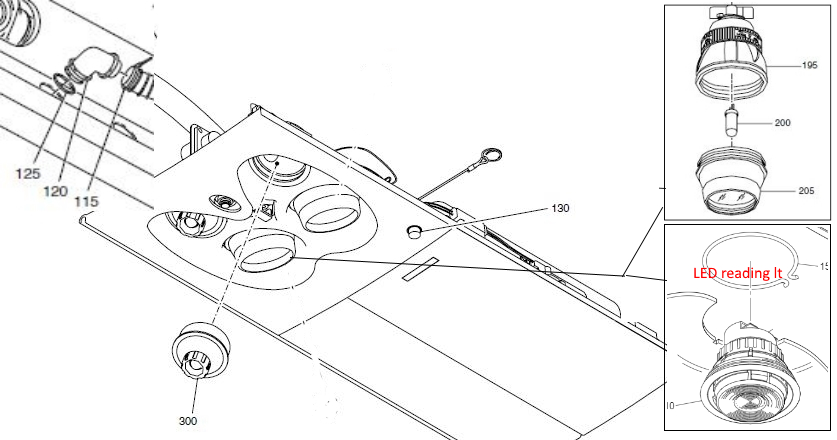

| Item | Bezeichnung | P/N | Menge |
| 10 | Led reading lt | CDEL1014-1 | |
| 125 | O-ring | 9452K71 | |
| 200 | bulb | 8GH007429-28 | |
| 205 | reading lt lens | 9EL408685-23 | |
| 300 | rubber piece | CDSP4512-9-B | |
| fuse PCB | R452-002 | ||

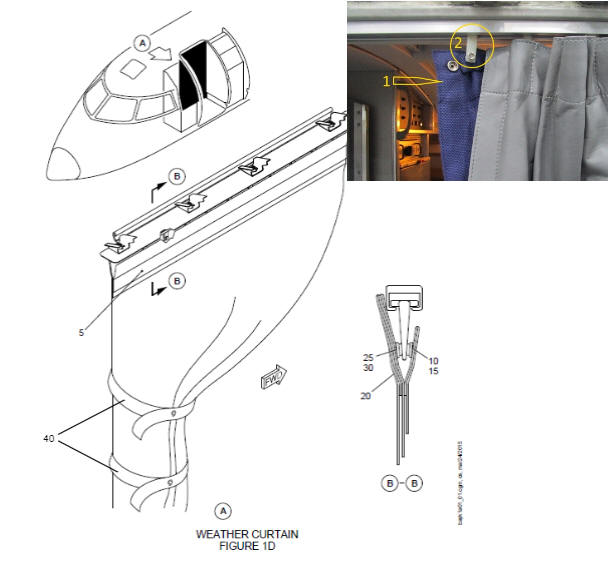

Curtain
 |
|||
|---|---|---|---|
| Item | Bezeichnung | P/N | Menge |
| 2 | Slider | CD1019-501 | |
| 5 | Weather curtain inner layer | P02819-1 | |
| 20 | Weather curtain outer layer | P02819-2 | |
| 40 | Strap assy | P02819-3 | |
 |
|||
|---|---|---|---|

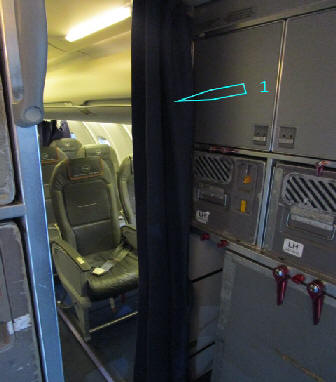

| Item | Bezeichnung | P/N | Menge |
| 1 | Cabin curtain | C028-82020P1513 | |
